General Information
Product Family Falcon Series
Camera Model Vadzo Falcon-544CRH
Sensor
Sensor AR0544 CMOS Sensor from Onsemi Hyperlux™ LP
Sensor Format 1/4.2"
Pixel Size 1.4 μm x 1.4 μm
Max Resolution 5MP - 2592(H) x 1944(V)
Shutter Rolling Shutter
Chroma Color
Camera
Optics S Mount (M12 Standard) with VCM Autofocus
Lens FOV Customizable FOV Options (Default 74DFOV)
Focus Type VCM-Based Autofocus (Software Controlled)
Interface USB 3.2 Gen1 Type C Interface Backward Compatible to USB 2.0
GPIO Connector None
Power USB Powered
Operating Temperature -30⁰C to +85⁰C
Dimension 38mm (L) x 38mm (B) convertible to 32mm (L) x 32mm (B)
Weight 13 Grams (Without Lens)
OS Supported Windows, Linux, and Android (Need additional SDK)
Conformity UVC Compliant, RoHS 3, REACH

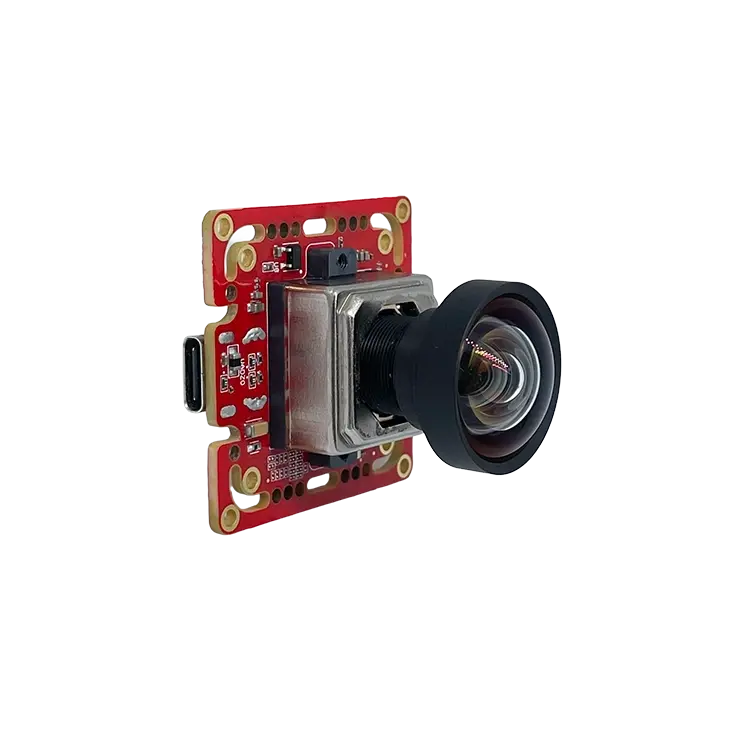

AR0544 Color VCM Autofocus USB 3.2 Gen 1 Camera
Falcon-544CRH
Description :
The Falcon-544CRH is a 5MP Color Rolling Shutter USB 3.2 Gen 1 Camera developed around the onsemi AR0544 Hyperlux™ LP image sensor. Designed for embedded vision applications, the camera supports videoconferencing, smart access, virtual & augmented reality, machine vision, and retail analytics. The compact S-Mount (M12 standard) camera module features VCM-based autofocus with software-controlled focus adjustment, automatic exposure control, enhanced Dynamic Range (eDR) and line-interleaved HDR (LI-HDR) modes, Wake on Motion (WOM), and support for Windows, Linux, and Android (additional SDK required), with UYVY and MJPEG video formats, enabling high-resolution imaging across multiple deployment environments.
IN STOCK
(Will be available in 12 weeks)
Mentioned Price is Applicable for orders above 1k units (Excluding Lens & Cables)
The shipment will be delivered in 12 weeks.
Price Details
UNIT PRICE
NOT INCLUSIVE
$245.00
Lens & Cable
QUANTITY
50 - 99
250+
$125.00
$149.00
Lens & Cable
Lens & Cable
100 - 249
Login to Download Datasheet
Datasheet
Download Initiated!
You can download again after 60 seconds.
CAD File
Download Initiated!
You can download again after 60 seconds.
Downloads
Falcon-544CRH
Camera can be customized to meet your needs.
Vadzo team shall be able to assist you with the details on this. Reach Vadzo Team for customization & quotation for bulk quantities.
Form Factor Modification & Board Redesigns.
Firmware Modifications to Incorporate Custom Features.
Design & Integration of NIR and Color LED Array Boards.
Design & Integration of Microphones & Speakers.
Design & Integration of Advanced Sensors: ToF, mmWave Radar, IMU.
Lens Holder Modifications & Electro-Mechanical Lens Filter Control.
Enclosure Design & Manufacturing: IP-Rated and Non IP-Rated.
