Series :
Bolt-1335CRA
Description :
Vadzo Bolt-1335CRA is a 4K MIPI Camera based on Onsemi AR1335 Sensor coupled with high-performance ISP. The camera delivers max resolution of 13MP and Video streaming of 4K, 1080p and 720p. Applicable in use cases such as kiosk camera, digital signage camera, retail AI camera, automation camera, robotics camera, inspection camera, document scanning camera, etc. Bolt-1335CRA has been integrated with solutions based on platforms such as Raspberry PI, Nvidia Nano, Nvidia XavierNX, etc.
IN STOCK
(Will be available in 2 weeks)
Mentioned Price is Applicable for orders above 1k unit
The shipment will be delivered in 2 to 3 weeks.

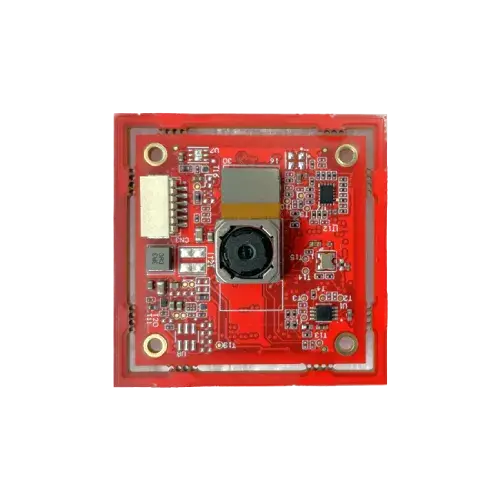

AR1335 Color 4K Autofocus MIPI Camera
Bolt-1335CRA
General Information
Product Family Bolt Series
Camera Model Vadzo Bolt-1335CRA
Sensor
Sensor AR1335 CMOS Sensor from Onsemi
Sensor Format 1/3.2"
Pixel Size 1.1um x 1.1um
Max Resolution 13MP - 4208(H) x 3120(V)
Shutter Rolling Shutter
Chroma Color
Camera
Optics VCM based Auto-Focus with Focus Range of 100mm to Infinity.
Lens FOV 74 DFOV and 127 DFOV
Interface 2 Lane MIPI CSI-2 & 4 Lane MIPI CSI-2
Operating Temperature -30⁰C to 70⁰C
Dimension 40mm (L) x 18.5mm (B) x 9.8mm (H)
Weight 12 Grams
Conformity RoHS 3, REACH
Price Details
UNIT PRICE
NOT INCLUSIVE
$189.00
Lens & Cable
QUANTITY
1 - 99
1000 - 4999
$110.00
$170.00
Lens & Cable
Lens & Cable
100 - 999
Login to Download Datasheet
Datasheet
CAD File
Camera DXF File
Downloads
Bolt-1335CRA
Vadzo team shall be able to assist you with the details on this. Reach Vadzo Team for customization
camera can be customized to meet your needs.
1
Form factor modifications and Board redesigns.
2
Firmware modifications to incorporate custom features.
3
Design & Integration of NIR & Color LED Array Boards.
4
Design & Integration of Microphones & Speakers.
5
Design & Integration of Advanced Sensors: ToF Sensor, mmWave Radar, IMU.
6
Lens Holder Modifications & Electro-Mechanical Lens Filter Control.
7
Enclosure Design & Manufacturing: IP-Rated and Non IP-Rated.
Accessories
What is the maximum resolution the camera can support?
What are the video formats supported by the camera?
What are the image formats supported by the camera?
Does the camera come with lens?
Can I replace the lens with any lens of my choice?
Does the camera have an adapter board?
Does the camera come with drivers?
Are there any Minimum Order Quantities for the camera?
