SKU: Innova-662CRS
IMX662 Ultra Low Light 1080P GigE Camera
PriceFrom $392.00
top of page
Description :

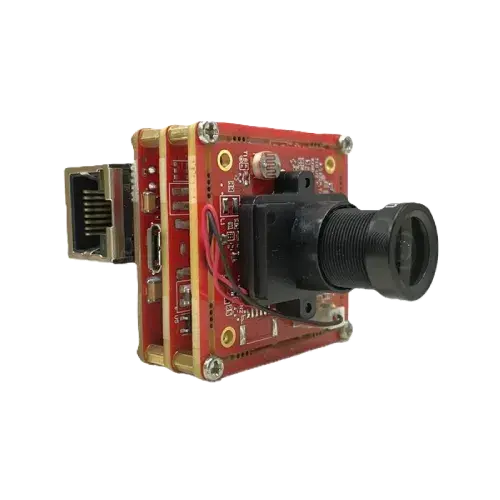

Vadzo Innova-662CRS is an ultra-low light GigE Camera based on Sony Starvis 2 IMX662 Sensor coupled with high-performance ISP. The camera delivers max resolution of 2MP and Video streaming of 1080p and 720p. Applicable in use cases such as traffic monitoring camera, patient monitoring camera, security camera, video surveillance camera, smart parking camera, ICU camera, etc.
Applications:
Pathology Devices
Kiosks & Signages
Smart City Solutions
Retail Analytics
AGVs and Robotics
UAVs and Drones
Medical Devices
General Information
Product Family Innova Series
Camera Model Vadzo Innova-662CRS
Sensor
Sensor IMX662 CMOS Sensor from Sony
Sensor Format 1/2.8"
Pixel Size 2.9 µm x 2.9 µm
Max Resolution 2MP - 1920(H) x 1080(V)
Shutter Rolling Shutter
Chroma Color
Camera
Optics S Mount (M12 Standard) with Auto Switch IR-Cut Filter
Lens FOV 105 DFOV
Interface 100Base-T and 1000base-T modes
Connector Standard RJ45 Ethernet Interface
GPIO Connector Yes Available*
Power Power over Ethernet (Compliance with PoE 802.3af standard 36 to 57V)
Operating Temperature -40⁰C to 85⁰C
Dimension Three Boards: 38mm (L) x 38mm (B)
Weight 25 Grams (Without Lens)
OS Supported Windows, Linux, and Android
Conformity OnVIF Compliant, RoHS 3, REACH
Price Details
QUANTITY
UNIT PRICE
NOT INCLUSIVE
1 - 249
$395.00
Lens & Cable
250 - 999
$199.00
Lens & Cable
1000 - 4999
$160.00
Lens & Cable
Login to Download Datasheet
Downloads
IMX662 Ultra Low Light 1080P GigE Camera
Camera can be customized to meet your needs.
Vadzo team shall be able to assist you with the details on this. Reach Vadzo Team for customization & quotation for bulk quantities.
Form Factor Modification & Board Redesigns.
Firmware Modifications to Incorporate Custom Features.
Design & Integration of NIR and Color LED Array Boards.
Design & Integration of Microphones & Speakers.
Design & Integration of Advanced Sensors: ToF, mmWave Radar, IMU.
Lens Holder Modifications & Electro-Mechanical Lens Filter Control.
Enclosure Design & Manufacturing: IP-Rated and Non IP-Rated.
Accessories
.webp)
.webp)
%20(2).webp)
%20(1).webp)
What is the maximum resolution the camera can support?
The camera can support a maximum resolution of 2MP.
What are the video formats supported by the camera?
Yes. Our camera samples are shipped with our default M12/S-Mount lens that supports field of view of 105DFOV. For volume procurement, our sales team can assist you with the purchase with lens or without lens.
What are the image formats supported by the camera?
The camera supports image capture in YUV and MJPEG formats.
Does the camera come with lens?
Yes. Our camera samples are shipped with our default M12/S-Mount lens that supports field of view of 105DFOV. For volume procurement, our sales team can assist you with the purchase with lens or without lens.
Can I replace the lens with any lens of my choice?
Yes. The camera comes with a standard M12/S-Mount Lens Holder. You shall be able to integrate any S-Mount lens of your choice. However, you need to consider the compatibility in terms of image sensor format and FOV. There are cases where your lens might require additional LSC Corrections or Vignetting Corrections. In such cases, feel free to reach Vadzo Support Team.
Does the camera come with PoE Injector Power Adapter Power Supply?
The camera samples can be procured with the PoE Injector Power Adapter Power Supply. You can find it as an accessory option when you procure the sample. For Volume procurement, please consult with the Vadzo Sales team.
Do I have to provide external power or does the camera support PoE?
The camera supports both power options. You can either power the camera with a 5VDC input or you can use PoE. The camera sample can be procured with PoE Injector Adapter Power Supply.
Which software application can I use to test the camera?
This camera can be operated as a simple RTSP GigE camera or as OnVIF Compliant GigE Camera. To experience the complete feature set supported by the camera we recommend you test with our Vadzo GigE application available for Windows and Linux.
What are the OnVIF Profiles supported by the camera?
The camera supports OnVIF Profile S and OnVIF Profile T. The camera also has the capability to support OnVIF Profile M.
What are the OnVIF Profiles supported by the camera?
The camera supports OnVIF Profile S and OnVIF Profile T. The camera also has the capability to support OnVIF Profile M.
