SKU: Falcon-521CRH

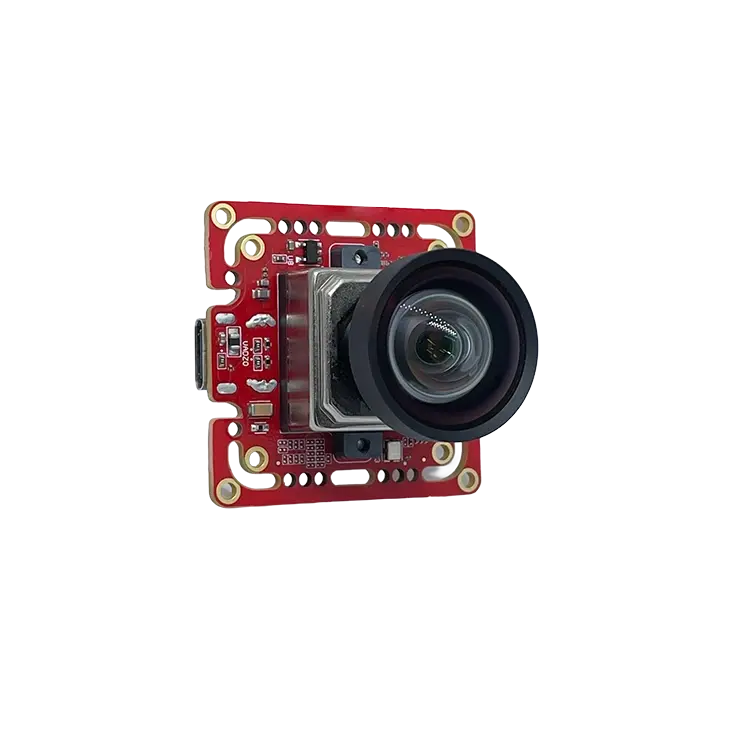

AR0521 Color Low-Light Autofocus USB 3.2 Gen 1 Camera
$205.00Price
This product is available for pre-order.
top of page
Description :
Vadzo Falcon-521CRH is a 5.1MP HDR USB 3.2 Gen 1 camera powered by the onsemi AR0521, a 1/2.5″ CMOS sensor with 2592 × 1944 resolution, 2.2 µm BSI pixel technology, and full-resolution output at 60 fps. Back-side illuminated architecture maximises photon capture per pixel, delivering superior low-light sensitivity and stable colour reproduction across challenging illumination environments. A 1440p 16:9 crop mode provides a native widescreen output option for video-oriented deployments.
The M12 VCM autofocus module enables software-controlled focus adjustment via the VISPA Arc SDK, with a standard M12 (S-Mount) lens holder accepting any compatible M12 lens — giving integrators full control over field of view and working distance without hardware modification. On-chip integrated lens shading correction (LSC) compensates for vignetting and colour roll-off at the pixel level when lenses are swapped, significantly reducing per-lens recalibration overhead. Slave mode supports external framerate synchronisation for trigger-based or strobe-illuminated multi-camera setups.
The camera connects via USB 3.2 Gen 1 Type-C (UVC-compliant) — plug-and-play on Windows, Linux, and Android with no driver installation. The Vadzo Arc application enables quick configuration and testing, while the VISPA Arc SDK provides programmatic control over autofocus, exposure, gain, ROI, white balance, and GPIO.
Key Highlights
5.1MP @ 60 fps | 1/2.5″ optical format | 2.2 µm BSI pixel.
Line-interleaved HDR readout with ISP-side reconstruction.
M12 VCM autofocus with interchangeable M12 lens support.
On-chip LSC for seamless lens swaps.
Slave mode for multi-camera synchronisation.
USB 3.2 Gen 1 UVC Interface for Plug-And-Play Operation.
Vadzo Arc Software for Rapid Camera Setup.
VISPA Arc SDK for Advanced Camera Parameter Control.
APIs for C/C++ And Python on Windows, Linux, Android.
Applications:
Smart Surveillance
Document Scanning
Quality Inspection
Retail Analytics
Medical Imaging
Related Videos:
General Information
Product Family Falcon Series
Camera Model Vadzo Falcon-521CRH
Sensor
Sensor AR0521 CMOS Sensor from Onsemi
Sensor Format 1/2.5"
Pixel Size 2.2 µm x 2.2 µm
Max Resolution 5MP - 2592(H) x 1944(V)
Shutter Rolling Shutter
Chroma Color
Camera
Optics S Mount (M12 Standard) with VCM Autofocus
Lens FOV 74° DFOV (Lens Dependent)
Focus Type VCM-Based Autofocus (Software Controlled)
Interface USB 3.2 Gen1 Type-C Interface Backward Compatible to USB 3.0
GPIO Connector Yes Available*
Power USB Powered
Operating Temperature -30⁰C to +85⁰C
Dimension 38mm (L) x 38mm (B) convertible to 32mm (L) x 32mm (B)
Weight 13 Grams (Without Lens)
OS Supported Windows, Linux, Android (Need additional SDK)
Conformity UVC Compliant, RoHS 3, REACH
Price Details
QUANTITY
UNIT PRICE
NOT INCLUSIVE
1 - 249
Contact Sales
Lens & Cable
250 - 999
Contact Sales
Lens & Cable
1000 - 4999
Contact Sales
Lens & Cable
Login to Download Datasheet
Downloads
Datasheet
Download Initiated!
You can download again after 60 seconds.
CAD File
Download Initiated!
You can download again after 60 seconds.
AR0521 Color Low-Light Autofocus USB 3.2 Gen 1 Camera
Camera can be customized to meet your needs.
Vadzo team shall be able to assist you with the details on this. Reach Vadzo Team for customization & quotation for bulk quantities.
Form Factor Modification & Board Redesigns.
Firmware Modifications to Incorporate Custom Features.
Design & Integration of NIR and Color LED Array Boards.
Design & Integration of Microphones & Speakers.
Design & Integration of Advanced Sensors: ToF, mmWave Radar, IMU.
Lens Holder Modifications & Electro-Mechanical Lens Filter Control.
Enclosure Design & Manufacturing: IP-Rated and Non IP-Rated.
.webp)
.webp)
.webp)
Experience Our Software Suite
Vadzo ARC is a software suite designed for seamless integration and control of USB Video Class (UVC) cameras. It provides precise camera configuration, real-time imaging adjustments, and firmware update management for Windows, Linux and Android platforms. The SDK ensures reliable performance with features like Region of Interest (ROI) configuration, Smart GPIO control, and fail-safe firmware updates.
%20(1).webp)
Vadzo ARC Software
VISPA ARC SDK: UVC Camera Control and Integration
VISPA ARC SDK enables camera control, video streaming, and hardware management for Vadzo USB cameras on Windows and Android. It supports autofocus, still capture, ROI, image flip, SMART IO, and secure updates. Windows includes DLL support, while Android SDK ensures seamless integration with Falcon and Merlin cameras.
Windows
Android
Linux
.webp)
.webp)
.webp)
What is the maximum resolution the camera can support?
The camera can support a maximum resolution of 5MP.
What are the video formats supported by the camera?
Yes. Our camera samples are shipped with our default M12/S-Mount lens that supports field of view of 74DFOV. For volume procurement, our sales team can assist you with the purchase with lens or without lens.
What are the image formats supported by the camera?
The camera supports image capture in BMP and JPEG formats.
Does the camera come with lens?
Yes. Our camera samples are shipped with our default M12/S-Mount lens that supports field of view of 74DFOV. For volume procurement, our sales team can assist you with the purchase with lens or without lens.
Can I replace the lens with any lens of my choice?
Yes. The camera comes with a standard VCM based Autofocus M12/S-Mount Lens Holder. You shall be able to integrate any S-Mount lens of your choice. However, you need to consider the compatibility in terms of image sensor format and FOV. There are cases where your lens might require additional LSC Corrections or Vignetting Corrections. In such cases, feel free to reach Vadzo Support Team.
Does the camera come with USB Cable?
Yes. The camera samples are shipped with Type A to Type C USB 3.0 Certified Cable. For volume procurement, our sales team can assist you with the purchase with cable or without cable.
Can I use USB 3.0 cable of my choice?
Yes. You shall be able to procure any USB 3.0 certified cable of your choice. However, to achieve the USB 3.0 performance from the camera, we recommend you procure USB 3.0 Certified Cables.
Which software application can I use to test the camera?
This is a UVC Compliant USB 3.0 Camera. To experience the complete feature set supported by the camera we recommend you test with our Vadzo Arc application available for Windows, Linux or Android.
Would Vadzo provide SDKs to access the non-UVC features supported by the camera?
Yes. Vadzo shall provide you with the SDKs to enable your application to access the non-UVC features that the camera can support. You can get access to our SDKs for Windows, Linux and Android.
Are there any Minimum Order Quantities for the camera?
No. There are no Minimum Order Quantity (MOQ) restrictions for the camera. Our sales team can help you with the purchase process for any volume that suits you.
