SKU: Vajra-1335CRA

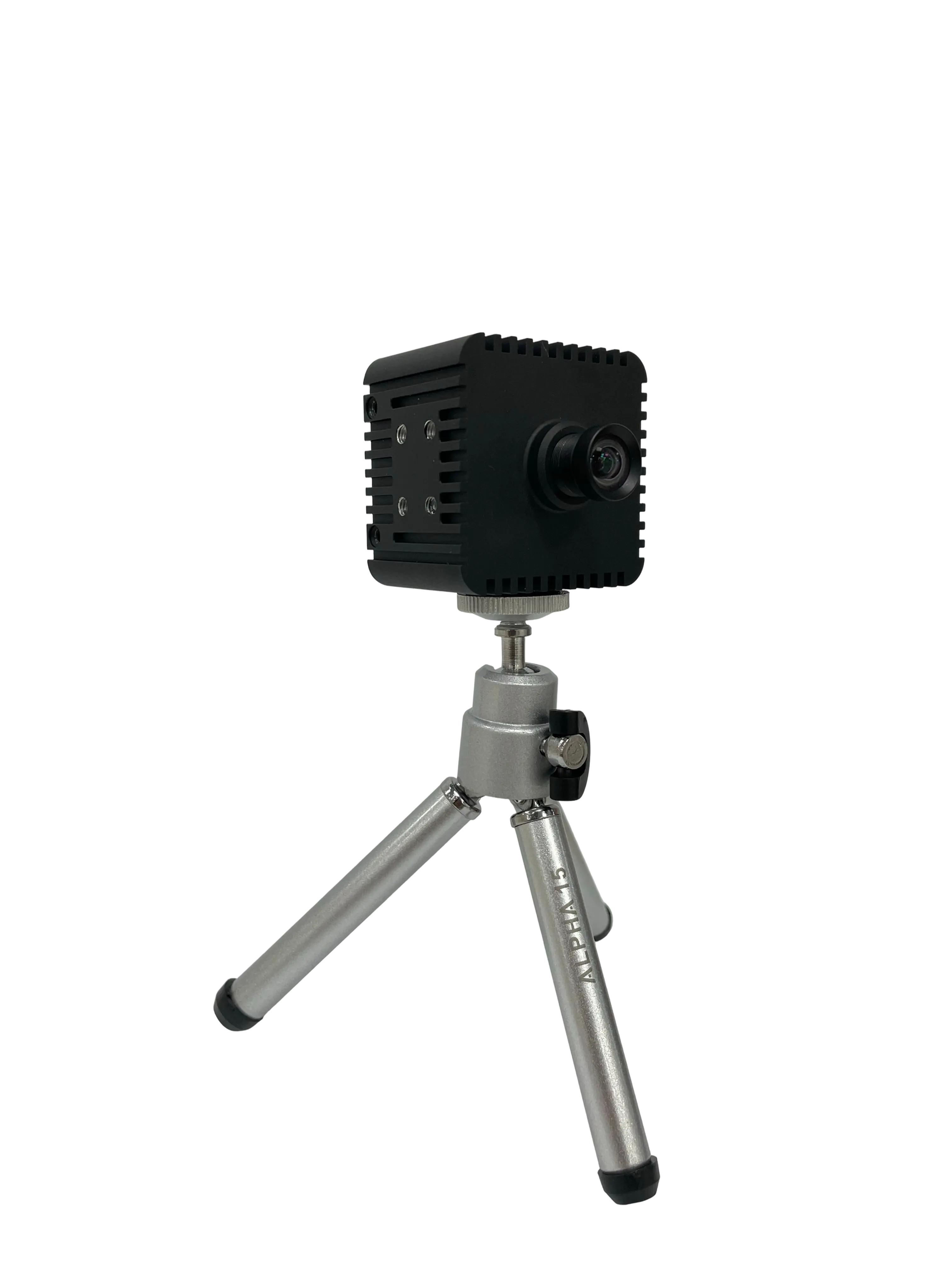

AR1335 Color 4K Autofocus USB 3.2 Gen 2x2 Camera
PriceFrom $820.00
top of page
Description :
Vadzo Vajra-1335CRA is a 4K Autofocus USB 3.2 Gen 2x2 Camera based on Onsemi AR1335 Sensor coupled with high-performance ISP with support for features such as ROI Based AE & AF, along with Digital PTZ, iHDR, etc. Designed as a reliable Autofocus USB Camera, it delivers max resolution of 13MP and Video streaming in 4K, 1080p and 720p. Applicable in use cases such as kiosk camera, digital signage camera, retail AI camera, automation camera, robotics camera, inspection camera, document scanning camera, etc.
Applications:
Kiosks & Signages
Smart City Solutions
Retail Analytics
AGVs and Robotics
UAVs and Drones
Medical Devices
Pathology Devices
General Information
Product Family Vajra Series
Camera Model Vadzo Vajra-1335CRA
Sensor
Sensor AR1335 CMOS Sensor from Onsemi
Sensor Format 1/3.2"
Pixel Size 1.1 µm x 1.1 µm
Max Resolution 13MP - 4208(H) x 3120(V)
Shutter Rolling Shutter
Chroma Color
Camera
Optics VCM Based Autofocus with Focus Range of 100mm to Infinity
Lens FOV Two Variants: 75DFOV and 127DFOV.
Interface USB 3.2 Gen 2x2 Type C Interface Backward Compatible to USB 3.2 Gen 1
GPIO Connector Yes Available*
Power USB Powered
Operating Temperature -30⁰C to 70⁰C
Dimension 78mm (L) x 15.8mm (B) x 9.8mm (H)
Weight 13 Grams (Without Lens)
OS Supported Windows, Linux, Android (Need additional SDK)
Conformity UVC Compliant, RoHS 3, REACH
Price Details
QUANTITY
UNIT PRICE
NOT INCLUSIVE
1 - 249
Contact Sales
Lens & Cable
250 - 999
Contact Sales
Lens & Cable
1000 - 4999
Contact Sales
Lens & Cable
Login to Download Datasheet
Downloads
Datasheet
Download Initiated!
You can download again after 60 seconds.
CAD File
Download Initiated!
You can download again after 60 seconds.
AR1335 Color 4K Autofocus USB 3.2 Gen 2x2 Camera
Camera can be customized to meet your needs.
Vadzo team shall be able to assist you with the details on this. Reach Vadzo Team for customization & quotation for bulk quantities.
Form Factor Modification & Board Redesigns.
Firmware Modifications to Incorporate Custom Features.
Design & Integration of NIR and Color LED Array Boards.
Design & Integration of Microphones & Speakers.
Design & Integration of Advanced Sensors: ToF, mmWave Radar, IMU.
Lens Holder Modifications & Electro-Mechanical Lens Filter Control.
Enclosure Design & Manufacturing: IP-Rated and Non IP-Rated.
Accessories
.webp)
.webp)
.webp)
%20(1).webp)
What is the maximum resolution the camera can support?
This autofocus USB camera can support a maximum resolution of 13MP.
What are the video formats supported by the camera?
Yes. This autofocus USB camera comes with built-in lens assembly that supports VCM Based Autofocus. Vadzo offers two variants of the camera with support for Field of View of 74DFOV and 127DFOV.
What are the image formats supported by the camera?
The camera supports image capture in BMP and JPEG formats.
Does the camera come with lens?
Yes. This autofocus USB camera comes with built-in lens assembly that supports VCM Based Autofocus. Vadzo offers two variants of the camera with support for Field of View of 74DFOV and 127DFOV.
Can I customize the autofocus module to support different flex lengths, different FOVs, or different sensor orientations?
Yes. Vadzo shall be able to support with the customizing of the autofocus modules flex length, sensor orientation, module orientation, flex connector part number, and field of view.
Does the camera come with USB Cable?
Yes. The camera samples are shipped with Type A to Type C USB 3.2 Certified Cable. For volume procurement, our sales team can assist you with the purchase with cable or without cable.
Can I use USB 3.2 cable of my choice?
Yes. You shall be able to procure any USB 3.2 certified cable of your choice. However, to achieve the USB 3.2 performance from the camera, we recommend you procure USB 3.2 Certified Cables.
Which software application can I use to test the camera?
This is a UVC Compliant USB 3.2 Gen 2x2 Camera. To experience the complete feature set supported by the camera we recommend you test with our Vadzo Arc application available for Windows, Linux or Android.
Would Vadzo provide SDKs to access the non-UVC features supported by the camera?
Yes. Vadzo shall provide you with the SDKs to enable your application to access the non-UVC features that the camera can support. You can get access to our SDKs for Windows, Linux and Android.
Are there any Minimum Order Quantities for the camera?
No. There are no Minimum Order Quantity (MOQ) restrictions for the camera. Our sales team can help you with the purchase process for any volume that suits you.
