General Information

Product Family Wave Series

Camera Model Vadzo Wave-544CRS

Sensor

Sensor AR0544 CMOS Sensor from Onsemi Hyperlux™ SG

Sensor Format 1/4.2"

Pixel Size 1.4 µm x 1.4 µm

Max Resolution 5MP - 2592(H) x 1944(V)

Shutter Rolling Shutter

Chroma Color

Camera

Optics S-Mount (M12 Standard)

Lens FOV 31 DFOV, 74 DFOV, 91DFOV

Interface Dual Band Wi-Fi (802.11a/b/g/n/ac), Bluetooth BT 5.0 (on Request)

Power Power over Ethernet, PoE 802.3af compliant (36V to 57V)

Operating Temperature −30°C to +85°C

Dimension Three board design, 38mm (L) x 38mm (W)

Weight 25 Grams (Without Lens)

OS Supported Windows and Linux

Conformity OnVIF Compliant, RoHS 3, REACH

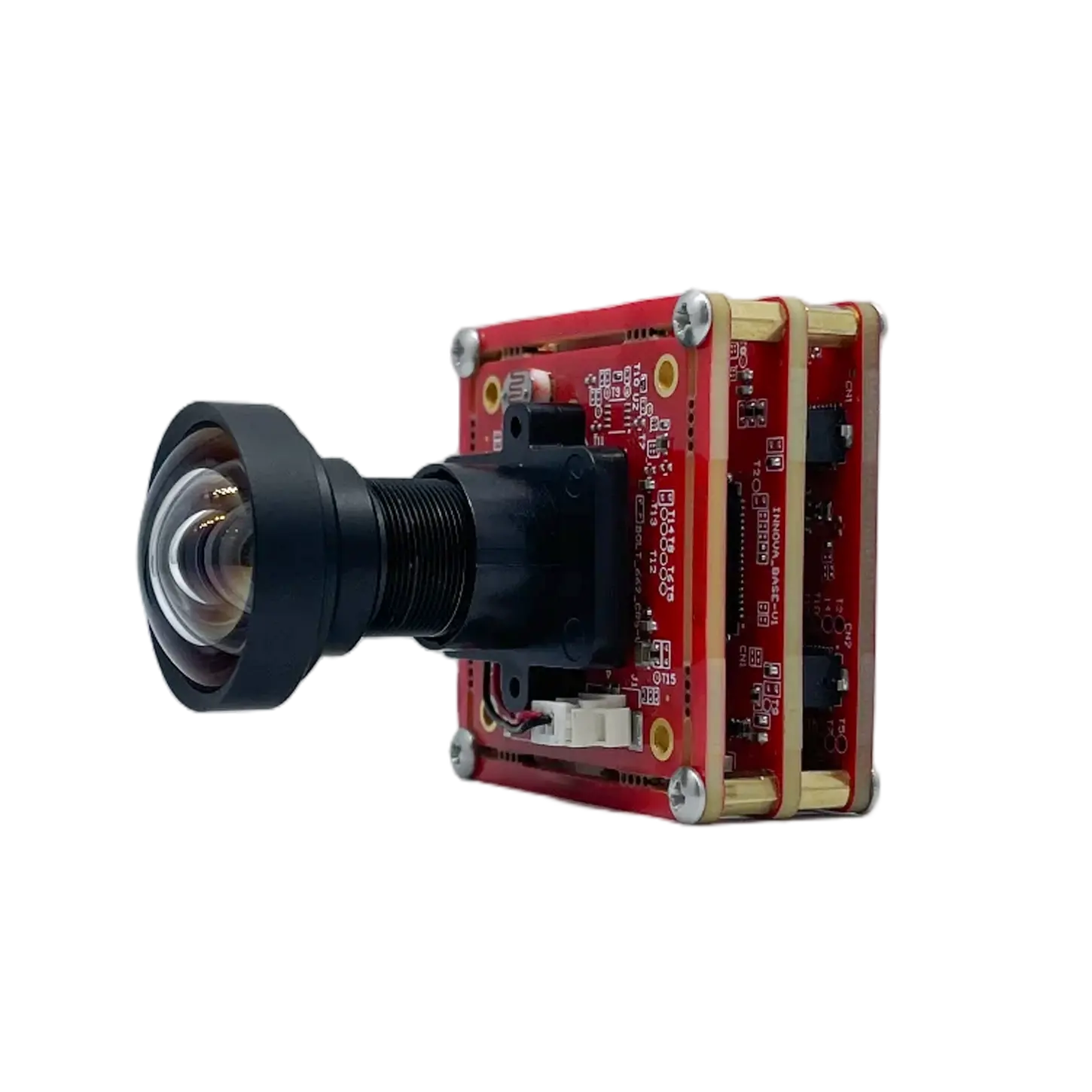

AR0544 5MP Color Rolling Shutter WiFi Camera

Name: AR0544 5MP Color Rolling Shutter WiFi Camera
Brand: Vadzo imaging
Price: 192 USD
Availability: InStock

Wave-544CRS

Description :

Vadzo's 5MP color Rolling Shutter WiFi camera is powered by the onsemi AR0544 CMOS image sensor, a stacked back side illuminated (BSI) design built with 1.4 µm pixel technology for versatile machine vision and general-purpose imaging applications. The sensor rolling shutter readout with support for Global Reset Release (GRR) delivers full resolution capture at up to 60 frames per second in linear mode. Enhanced near infrared response at 850 nm and 940 nm wavelengths extend performance into low light and NIR illuminated scenes. With a native color resolution of 5MP (2592 x 1944) on a 1/4.2-inch optical format, the sensor supports portable machine vision, robotics guidance, and wireless surveillance platforms that call for high resolution imaging without the cost or complexity of a global shutter design.

Dual band WiFi (802.11a/b/g/n/ac) connectivity, with Bluetooth BT 5.0 available on request, lets integrators mount the camera in locations where running a network cable is impractical, from mobile platforms to retrofit installations in existing facilities. Power over Ethernet, compliant with the 802.3af standard, still delivers power over a single cable, keeping installation simple even without a wired data connection. OnVIF compliance allows the camera to be discovered and integrated into standards-based video management systems without proprietary software. Onboard support for LI-HDR and enhanced Dynamic Range (eDR) modes extends the sensor's dynamic range up to 100 dB, giving integrators added headroom in mixed lighting conditions. Wake on Motion (WOM) support and multiple subsampling modes further allow the camera to operate at reduced power in applications where continuous full resolution streaming is not required.

Core Benefits

onsemi AR0544 5MP color CMOS sensor with 1.4 µm pixel Stacked BSI technology
Enhanced NIR response at 850 nm and 940 nm wavelengths for low light and NIR illuminated imaging
Electronic Rolling Shutter (ERS) with Global Reset Release (GRR) support
LI-HDR and eDR modes deliver up to 100 dB of dynamic range
High resolution 2592 x 1944 image output at up to 60 fps in linear mode
Dual Band WiFi (802.11a/b/g/n/ac) interface with Bluetooth BT 5.0 support on request
Power over Ethernet (PoE, IEEE 802.3af) for simplified single cable power delivery
OnVIF compliant for standards-based integration with video management systems
S-Mount (M12) lens interface with auto switch IR-Cut filter for day and night imaging
Wake on Motion (WOM) and multiple subsampling modes for low power operation
