Vadzo's Onsemi HyperLux Camera

Vadzo's Onsemi HyperLux Camera Portfolio

Vadzo's OnSemi HyperLux camera portfolio combines cutting-edge image sensor technology with proven embedded vision expertise. Built on OnSemi's HyperLux sensor family, these camera solutions deliver industry-leading HDR performance up to 150 dB, exceptional low-light sensitivity, and intelligent power management features like Wake-on-Motion. Designed for OEMs and system integrators, our HyperLux cameras provide plug-and-play integration across USB, MIPI, GigE, Wi-Fi, and SerDes interfaces, enabling rapid deployment in automotive ADAS, industrial automation, medical imaging, robotics, and smart surveillance applications.

Industry-Leading < 150 dB High Dynamic Range

Superior Low-Light & NIR Sensitivity

Ultra-Low Power with Wake-on-Motion

Multiple Interface Options

Onsemi HyperLux Technology Overview

Onsemi HyperLux is an advanced family of image sensors designed for automotive, industrial, and commercial imaging applications, delivering exceptional image quality in challenging lighting conditions with ultra-low power consumption and compact form factors. Vadzo offers camera solutions across all five HyperLux sensor families, including automotive-grade HyperLux sensors for ADAS and autonomous driving, HyperLux LP for battery-powered embedded vision systems, HyperLux LH for compact HDR imaging applications, HyperLux SG for distortion-free global shutter imaging, and HyperLux ID for advanced 3D Time-of-Flight sensing. These solutions support applications such as robotics, machine vision, autonomous vehicles, wearable devices, smart security, industrial inspection, and AR/VR systems. Key technologies include up to 150 dB HDR, Wake-on-Motion, Line-Interleaved HDR (LI-HDR), Enhanced Dynamic Range (eDR), Smart ROI processing, LED Flicker Mitigation, Adaptive Local Tone Mapping (ALTM), and global shutter technology for motion-critical imaging.

Onsemi HyperLux USB Camera Models

Vadzo's OnSemi HyperLux USB camera portfolio provides high-throughput, plug-and-play imaging with SuperSpeed USB connectivity. Built on OnSemi's HyperLux sensor family, these cameras integrate onboard ISP processing and UVC compliance for driverless operation on Windows, Linux, and Android platforms.

AR2020 Monochrome 20MP USB 3.0 Camera | Falcon-2020MRS

AR2020 Monochrome 20MP USB 3.0 Camera

Falcon-2020MRS

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 5K (5120x3840), 4K, FHD, HD, VGA

  • Sensor: 1/1.8" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Enhanced Dynamic Range, Excellent Low-Light & NIR Sensitivity, High-Speed Imaging

  • Applications: Machine Vision, Digital Pathology, Quality Inspection, Biometrics

  • Interface: UVC Compliant USB 3.2 Gen1 Type-C

AR0830 Color 4K HDR USB 3.0 Camera | Falcon 830CRS

AR0830 Color 4K HDR USB 3.0 Camera

Falcon-830CRS

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 4K (3840x2160), FHD, HD, VGA

  • Sensor: 1/2.9" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Wake-on-Motion, LI-HDR, eDR, Super Low-Power Mode

  • Applications: Video Conferencing, Wearable Cameras, Retail Analytics, Facial Recognition

  • Interface: UVC Compliant USB 3.2 Gen1 Type-C

AR0544 Color 5MP Low Power USB 3.0 Camera | Falcon-544CRS

AR0544 Color 5MP Low Power USB 3.0 Camera

Falcon-544CRS

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 5MP (2592x1944), FHD, HD, VGA

  • Sensor: 1/4.2" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Wake-on-Motion, LI-HDR, eDR, Ultra-Low Power Consumption

  • Applications: Smart Security, Wearable Cameras, Retail Analytics, Machine Vision

  • Interface: UVC Compliant USB 3.2 Gen1 Type-C

AR0246 Color 2MP HDR USB 3.0 Camera | Falcon-246CRS

AR0246 Color 2MP HDR USB 3.0 Camera

Falcon-246CRS

  • Sensor Family: Onsemi HyperLux LH

  • Resolution: FHD (1920x1080), HD, VGA

  • Sensor: 1/4" CMOS, 2.0 µm pixels

  • Features: 120 dB eHDR, Adaptive Local Tone Mapping, Wake-on-Motion, Compact Form Factor

  • Applications: Wearable Cameras, Facial Recognition, Smart Security, Dashboard Cam

  • Interface: UVC Compliant USB 3.2 Gen1 Type-C

AR0235 Color 2.3MP Global Shutter USB 3.0 Camera | Falcon-235CGS

AR0235 Color 2.3MP Global Shutter USB 3.0 Camera

Falcon-235CGS

  • Sensor Family: Onsemi HyperLux SG

  • Resolution: 2.3MP (1920x1200), FHD, HD, VGA

  • Sensor: 1/2.7" Global Shutter CMOS

  • Features: Global Shutter, FHD up to 120 FPS, Low Noise, Distortion-Free Imaging

  • Applications: High-Speed Scanning, Robotics, Motion Analysis, Industrial Inspection

  • Interface: UVC Compliant USB 3.2 Gen1 Type-C

AR0235 Monochrome Global Shutter USB Camera | Falcon-235MGS

AR0235 Monochrome Global Shutter USB Camera

Falcon-235MGS

  • Sensor Family: Onsemi HyperLux SG

  • Resolution: 2.3MP (1920x1200), FHD, HD, VGA

  • Sensor: 1/2.7" Global Shutter CMOS

  • Features: Global Shutter, FHD up to 120 FPS, Low Noise, NIR Sensitivity

  • Applications: Machine Vision, Industrial Inspection, High-Speed Capture

  • Interface: UVC Compliant USB 3.2 Gen1 Type-C

AR2020 Mono 20MP USB 3.2 Gen 2x2 Camera | Vajra-2020MRS

AR2020 Mono 20MP USB 3.2 Gen 2x2 Camera

Vajra-2020MRS

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 5K (5120x3840), 4K, FHD, HD, VGA

  • Sensor: 1/1.8" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Enhanced Dynamic Range, Excellent Low-Light & NIR Sensitivity, High-Speed Imaging

  • Applications: Machine Vision, Digital Pathology, Quality Inspection, Biometrics

  • Interface: UVC Compliant USB 3.2 Gen 2x2 Type-C

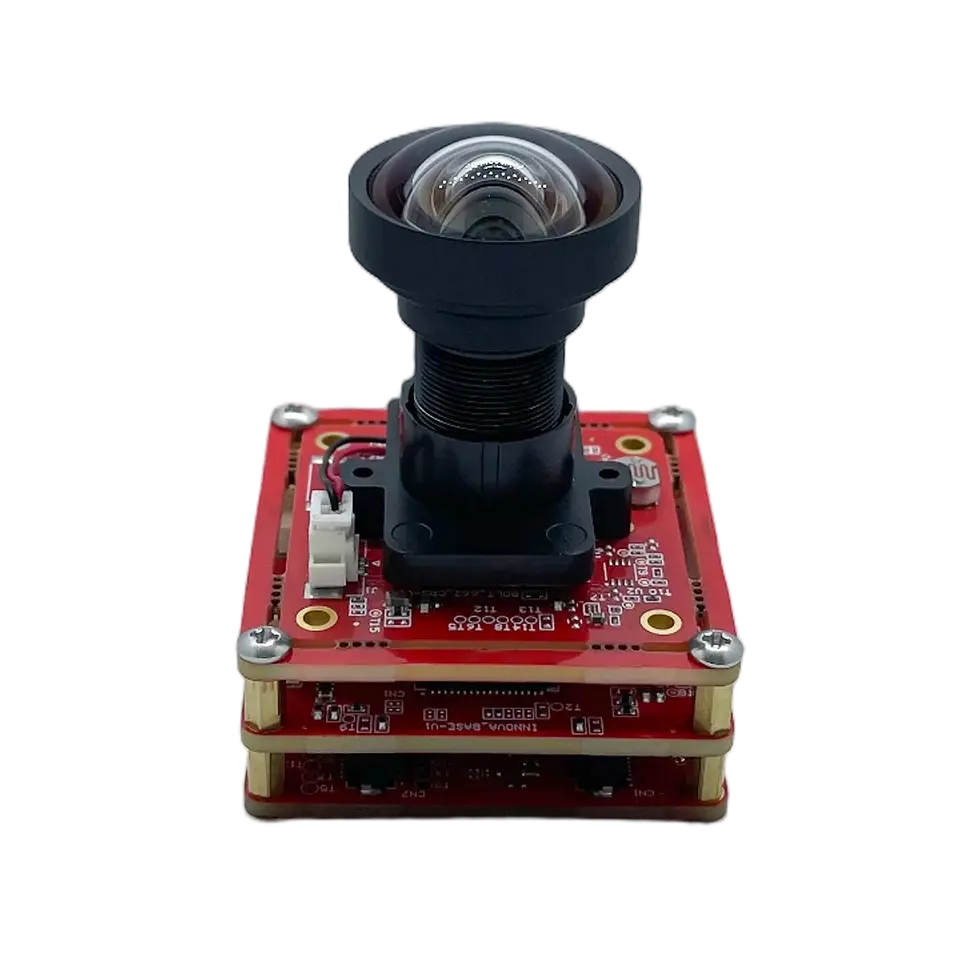

AR0235 Monochrome USB 3.2 Gen 2x2 Camera | Vajra-235MGS

AR0235 Monochrome USB 3.2 Gen 2x2 Camera

Vajra-235MGS

  • Sensor Family: Onsemi HyperLux SG

  • Resolution: 2.3MP (1920x1200), FHD, HD, VGA

  • Sensor: 1/2.7" Global Shutter CMOS

  • Features: Global Shutter, FHD up to 120 FPS, Low Noise, NIR Sensitivity

  • Applications: Machine Vision, Industrial Inspection, High-Speed Capture

  • Interface: UVC Compliant USB 3.2 Gen 2x2 Type-C

AR0235 Global Shutter USB 3.2 Gen 2x2 Camera | Vajra - 235CGS

AR0235 Global Shutter USB 3.2 Gen 2x2 Camera

Vajra-235CGS

  • Sensor Family: Onsemi HyperLux SG

  • Resolution: 2.3MP (1920x1200), FHD, HD, VGA

  • Sensor: 1/2.7" Global Shutter CMOS

  • Features: Global Shutter, FHD up to 120 FPS, Low Noise, Distortion-Free Imaging

  • Applications: High-Speed Scanning, Robotics, Motion Analysis, Barcode Reading

  • Interface: UVC Compliant USB 3.2 Gen 2x2 Type-C

Onsemi HyperLux MIPI CSI-2 Camera Models

The Bolt Series delivers board-level embedded vision with direct MIPI CSI-2 SoC integration. Designed for systems where USB overhead, power consumption, and latency are critical constraints, these Onsemi HyperLux camera modules provide native connectivity to Raspberry Pi, NVIDIA Jetson, NXP i.MX, and other embedded platforms.

AR2020 Monochrome 20MP MIPI CSI-2 Camera | Bolt-20202MRS

AR2020 Monochrome 20MP MIPI CSI-2 Camera

Bolt-2020MRS

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 5K (5120x3840), 4K, FHD, HD, VGA

  • Sensor: 1/1.8" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Enhanced Dynamic Range, NIR Sensitivity, Smart ROI

  • Platform Support: Raspberry Pi, NVIDIA Nano, NVIDIA Xavier NX

  • Interface: 4-Lane MIPI CSI-2

AR2020 Color 20MP MIPI CSI-2 Camera | Bolt - 2020CRS

AR2020 Color 20MP MIPI CSI-2 Camera

Bolt-2020CRS

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 5K (5120x3840), 4K, FHD, HD, VGA

  • Sensor: 1/1.8" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Enhanced Dynamic Range, Low-Light Sensitivity, Smart ROI

  • Platform Support: Raspberry Pi, NVIDIA Jetson, NXP i.MX

  • Interface: 4-Lane MIPI CSI-2

AR0830 Color 4K HDR MIPI CSI-2 Camera | Bolt-830CRS

AR0830 Color 4K HDR MIPI CSI-2 Camera

Bolt-830CRS

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 4K (3840x2160), FHD, HD, VGA

  • Sensor: 1/2.9" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Wake-on-Motion, LI-HDR, eDR, Super Low-Power Standby

  • Platform Support: Raspberry Pi, NVIDIA Nano, NVIDIA Xavier NX, NXP i.MX, MediaTek

  • Interface: 4-Lane MIPI CSI-2

AR0544 Color 5MP MIPI CSI-2 Camera | Bolt-544CRS

AR0544 Color 5MP MIPI CSI-2 Camera

Bolt-544CRS

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 5MP (2592x1944), FHD, HD, VGA

  • Sensor: 1/4.2" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Wake-on-Motion, LI-HDR, eDR, Ultra-Low Power

  • Platform Support: Raspberry Pi, NVIDIA Jetson, NXP i.MX

  • Interface: 4-Lane MIPI CSI-2

AR0246 Color 2MP HDR MIPI CSI-2 Camera | Bolt-246CRS

AR0246 Color 2MP HDR MIPI CSI-2 Camera

Bolt-246CRS

  • Sensor Family: Onsemi HyperLux LH

  • Resolution: FHD (1920x1080), HD, VGA

  • Sensor: 1/4" CMOS, 2.0 µm pixels

  • Features: 120 dB eHDR, Adaptive Local Tone Mapping (ALTM), Compact Form Factor

  • Platform Support: Raspberry Pi, NVIDIA Nano, NVIDIA Xavier NX

  • Interface: 2-Lane MIPI CSI-2

AR0822 Color 4K HDR MIPI CSI-2 Camera | Bolt-822CRS

AR0822 Color 4K HDR MIPI CSI-2 Camera

Bolt-822CRS

  • Sensor Family: Onsemi HyperLux LH

  • Resolution: 4K (3848x2168), FHD, HD, VGA

  • Sensor: 1/2.7" CMOS, 2.0 µm pixels

  • Features: 120 dB eHDR, Wake-on-Motion, LED Flicker Mitigation

  • Platform Support: Raspberry Pi, NVIDIA Jetson, NXP i.MX

  • Interface: 4-Lane MIPI CSI-2

Onsemi HyperLux SerDes Camera Models

Vadzo's Armor Series leverages FPD-Link III and FPD-Link IV technology for long-distance, high-speed data transmission. Ideal for automotive ADAS, intelligent transportation systems, and industrial machine vision requiring cable lengths beyond 10 meters.

AR0830 4K HDR FPD-Link III Camera | Armor-830CRS-FPD3

AR0830 4K HDR FPD-Link III Camera

Armor-830CRS-FPD3

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 4K (3840x2160), FHD, HD

  • Sensor: 1/2.9" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Wake-on-Motion, LI-HDR, eDR, Long-Distance Transmission

  • Applications: Automotive ADAS, Surround View Systems, Industrial Robotics

  • Interface: FPD-Link III SerDes

AR0246 2MP HDR FPD-Link III Camera | ARMOR 246CRS

AR0246 2MP HDR FPD-Link III Camera

Armor-246CRS-FPD3

  • Sensor Family: Onsemi HyperLux LH

  • Resolution: FHD (1920x1080), HD, VGA

  • Sensor: 1/4" CMOS, 2.0 µm pixels

  • Features: 120 dB eHDR, ALTM, Wake-on-Motion, Long-Distance Transmission

  • Applications: Dashboard Cameras, Wearable Cameras, Smart Security

  • Interface: FPD-Link III SerDes

AR0830 4K HDR FPD-Link IV Camera | Armor-830CRS-FPD4

AR0830 4K HDR FPD-Link IV Camera

Armor-830CRS-FPD4

  • Sensor Family: Onsemi HyperLux LP

  • Resolution: 4K (3840x2160), FHD, HD

  • Sensor: 1/2.9" BSI Stacked CMOS, 1.4 µm pixels

  • Features: Wake-on-Motion, LI-HDR, eDR, Higher Bandwidth, Extended Cable Length

  • Applications: Next-Gen ADAS, Autonomous Vehicles, Smart City Infrastructure

  • Interface: FPD-Link IV SerDes

Get Onsemi HyperLux Camera Samples in 48 Hours

Ready to Experience Onsemi HyperLux Camera Performance?

Request an evaluation kit and see the difference industry-leading HDR, low-light sensitivity, and ultra-low power operation can make in your embedded vision application. Our engineering team is ready to assist with technical specifications, custom modifications, and integration support. Reach Vadzo Team for customization & quotation for bulk quantities.

Form Factor Modification & Board Redesigns.

Firmware Modifications to Incorporate Custom Features.

Design & Integration of NIR and Color LED Array Boards.

Design & Integration of Microphones & Speakers.

Design & Integration of Advanced Sensors: ToF, mmWave Radar, IMU.

Lens Holder Modifications & Electro-Mechanical Lens Filter Control.

Enclosure Design & Manufacturing: IP-Rated and Non IP-Rated.
