Why Engineers Prefer Cameras with Global Shutter

In embedded vision engineering, capturing a fast-moving subject is not just a matter of frame rate; it’s about timing precision down to the pixel. Traditional rolling shutter architectures, while cost-effective and sufficient for static scenes, introduce geometric distortions when objects are in motion. For engineers building real-time vision systems, especially in robotics, industrial automation, and high-speed inspection, the answer lies in cameras with a global shutter.

These cameras are engineered to expose all pixels at once, allowing the entire frame to be captured in a single snapshot. When paired with USB 3.0 bandwidth and advanced ISPs, they deliver precise, artifact-free images that remain sharp under rapid movement.

This article explores the sensor-level benefits of global shutter architectures, real-world deployment scenarios, and cutting-edge global shutter USB cameras available today for high-performance applications.

Shutter Architecture: Global vs. Rolling

Let’s start with what matters most: temporal alignment. In rolling shutter sensors, pixel rows are exposed sequentially. Any object moving during that interval gets recorded in a distorted shape. This is why wheels look bent in low-end dash cams and fast-moving parts become unreadable in basic inspection systems.

Global shutter sensors, by contrast, expose all pixels simultaneously. This avoids skew, wobble, or partial exposure artifacts, enabling the exact capture of object geometry, even under high-speed movement or vibration.

From a hardware-level design perspective, the sensor includes storage nodes to hold the charge per pixel until it is read out. This architecture enables a true snapshot approach ideal for:

• Synchronized multi-camera setups

• Fast object tracking

• Vibration-heavy environments (e.g., drones)

• High-speed conveyor line inspections

USB 3.0: The Interface That Makes It Scalable

While global shutter performance begins at the sensor, maintaining the throughput requires a pipeline that can keep up. USB 3.0 offers up to 5 Gbps, allowing these cameras to stream high-resolution data without dropping frames or compressing critical details.

Vadzo Imaging’s global shutter USB camera line is built around this interface standard, enabling plug-and-play integration into existing systems, including Windows, Linux, and Android platforms, without the need for proprietary drivers.

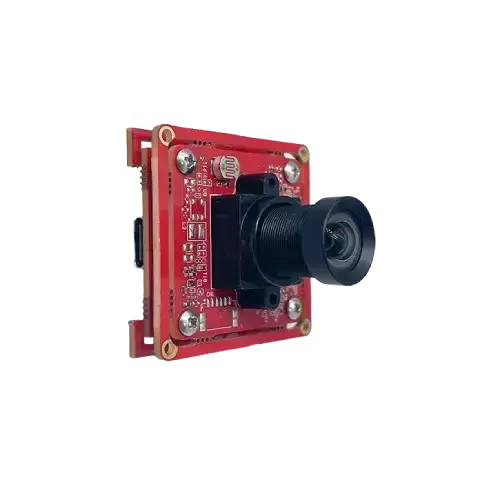

Vadzo’s USB Cameras with Global Shutter Technology

1. Falcon-900MGS – IMX900 Monochrome Global Shutter USB 3.0 Camera

Designed around the Sony Pregius S™ IMX900 CMOS sensor, the Falcon-900MGS excels in environments requiring precision timing and high-speed tracking. Key technical specs include:

• Sensor: IMX900 Monochrome CMOS

• Resolution: 3MP

• Dynamic Range: Quad HDR up to 120 dB

• Shutter Control: Programmable Quad Shutter Modes

• Additional Features: High NIR sensitivity, fast auto-exposure

Engineering Use Cases: Machine calibration, robotic arm vision, smart parking automation, and high-frame-count metrology.

2. Falcon-234CGA – AR0234 Global Shutter Autofocus USB 3.0 Camera

This model combines global shutter imaging with autofocus capabilities, making it highly adaptive to variable-depth environments. Specifications include:

• Sensor: Onsemi AR0234, Color CMOS

• Autofocus: Integrated with ISP

• Resolution: 2MP (1080p@60fps)

• Shutter: Global

• Use Case Fit: Autonomous drones, traffic enforcement cameras, and variable-range robotics.

Autofocus is not common in global shutter designs; this model is an exception that balances motion-freeze performance with flexible focus distance handling.

3. Falcon-234CGS – AR0234 Color Global Shutter USB 3.0 Camera

When your system needs color-accurate motion capture, the Falcon-234CGS meets that requirement with minimal latency. It provides:

• Sensor: AR0234 Color

• Streaming: 1080p at 60 fps, VGA at 90 fps

• Interface: USB 3.0 with ISP control

• Target Applications: Smart surveillance, real-time AI inference systems, robotics navigation

This is ideal when color context is essential, for example, in facial recognition or traffic signal detection.

4. Falcon-234MGS – AR0234 Monochrome Global Shutter USB 3.0 Camera

A more traditional approach for grayscale-based image processing, the Falcon-234MGS leverages the same AR0234 sensor in a monochrome configuration for enhanced sensitivity.

• Resolution: 2MP

• Dynamic Response: High SNR at low light

• Shutter Control: Frame-synchronous global triggering

• Applications: Optical measurement systems, barcode scanning, lab instrumentation, robotics control

Real-World Application Snapshots

Robotics and Industrial Automation

In robotic arms or pick-and-place systems, even a millisecond delay in vision processing can throw off calibration. With global shutter USB cameras, each frame delivers the spatial accuracy necessary for reliable closed-loop control.

Traffic Enforcement and Smart Mobility

Global shutter ensures that fast-moving license plates or facial data aren’t warped or unreadable due to rolling scan timing. These cameras enable frame-perfect snapshotting, even at night, thanks to integrated NIR sensitivity.

Embedded Vision in Edge Devices

Smart kiosks, AI surveillance boxes, and edge inference platforms often need compact yet high-throughput vision modules. The USB 3.0 interface enables direct integration into such devices without additional interface bridges.

Deployment Considerations

• Synchronization: Global shutter enables precise multi-camera sync via external triggers.

• Thermal Efficiency: Vadzo designs ensure passive cooling for long-duration stable performance.

• Driverless Integration: UVC-compliance allows native system recognition, making development cycles shorter.

• ISP Exposure Modes: HDR tuning, gain control, gamma mapping, and zone-specific auto-exposure can be programmed at the firmware level.

If your application involves movement, especially movement that matters, cameras with global shutter are the logical choice. By eliminating spatial distortion at the point of capture, they allow downstream processing, recognition, and decision systems to operate without error-prone corrections.

Vadzo’s global shutter USB camera lineup combines sensor-level intelligence with USB-based flexibility, making them ideal for engineers, system architects, and product builders deploying high-speed vision into real-world products.

For engineers looking to bring clarity to motion, accuracy to automation, and reliability to fast-paced imaging, global shutter isn't an upgrade; it’s a baseline.
