Meet Falcon-1335CRS - 13MP 4K USB Camera with S-Mount Optics Flexibility
Built to solve real OEM vision challenges.
Powered by the Onsemi AR1335 advanced BSI sensor, Falcon-1335CRS delivers stable 4K imaging, fixed-focus optical consistency, and controlled image processing without requiring complex external ISP hardware.
Available in square board architecture with single-board and two-board hardware configurations, enabling integration flexibility across embedded and industrial designs.
Optics Flexibility Based on Application Needs
Select your required field of view and IR configuration:
74° DFOV with IR Filter
74° DFOV without IR Filter
Custom DFOV with IR Filter
Custom DFOV without IR Filter
Specification Overview
Parameter | Technical Details (Falcon-1335CRS) |
|---|---|
Sensor | Onsemi AR1335; 13MP, 1/3.2" optical format, 1.1µm BSI-2 pixels |
Optics | S-Mount (M12) lens holder with fixed-focus lens assembly |
Video Resolutions | • 13MP (4208 × 3120) @ 10fps (YUV)
• 13MP (4208 × 3120) @ 10fps (MJPEG)
• 4K (3840 × 2160) @ 15fps (YUV2)
• 4K (3840 × 2160) @ 30fps (MJPEG) |
ISP Features | On-board ISP supporting color correction, centered and ROI auto-exposure, MJPEG compression, and digital PTZ |
Interface | USB 3.2 Gen1 Type-C with backward compatibility to USB 2.0 |
Compliances | UVC, NDAA, RoHS3, REACH |
Pre-Compliance | FCC, CE |
Software & SDK Support | Vadzo Arc software with VISPA SDK; compatible with Windows and Linux, with API support for C, C++, C#, and Python |
Choose the board format that matches your product architecture:

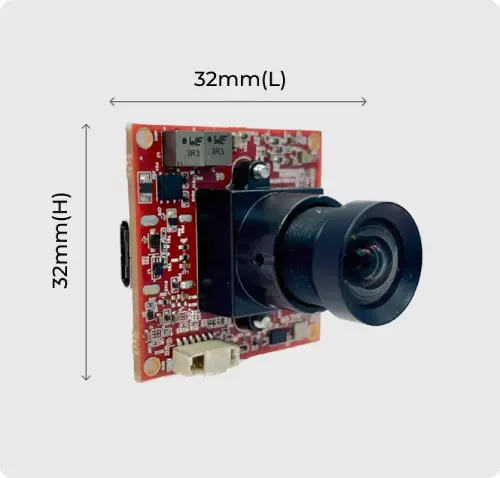

Single Board Solution
Falcon-1335CRS
Two Board Solution
Falcon-1335CRS
_gif.gif)
What Problems Does Falcon-1335CRS Solve?
Focus Variability in Fixed-Deployment Systems
Fixed-focus optical configuration eliminates mechanical movement, ensuring repeatable image consistency across long-term deployments.
Image Degradation in Mixed Lighting Conditions
Backside-illuminated 1.1µm pixels improve sensitivity, while integrated ISP tuning maintains balanced exposure and color stability.
Limited Optical Adaptability in Compact Designs
S-Mount lens holder enables selection of DFOV and IR configuration based on exact working distance and application geometry.
Deployment Delays Due to Compatibility Issues
A dedicated team of Application Engineers, optics specialists, hardware & firmware experts ensure structured support from trials to mass production.
Scalability Challenges in Volume Procurement
Decade-long imaging expertise and robust SCM enable seamless scaling from samples to 100K+ units with supply continuity and cost stability.
Accelerate Integration With Vadzo
What We Actually Do
Faster Camera Integration. Fewer Iterations. Quicker Time-to-Market.
Integrating a camera into your system is not just about plugging in a module. It involves sensor alignment, optics, ISP tuning, bandwidth optimization, firmware integration, and system-level validation.
Vadzo works alongside your engineering team to convert camera capability into deployable system performance.
Architecture First
Before development begins, we help define:
Requirement Analysis
Sensor & Optics Selection
Interface selection (USB, MIPI, GigE, GMSL, FPD-Link)
Data flow and bandwidth planning
Illumination and trigger strategy
This prevents downstream rework.
Structured Support
Before development begins, we help define:
Optics Calibrations
ISP Tuning and Optimizations
Driver and SDK Alignment
Form Fit Optimization
Use Case Specific POCs
Vadzo doesn’t just supply cameras. We engineer complete imaging subsystems that integrate cleanly into your product architecture.
Anniversary Pricing
Secure volume pricing for immediate and upcoming builds:
Quantity | Standard Pricing | Anniversary Pricing |
|---|---|---|
5000 Units | - | USD 72 / Per Unit |
1000 Units |
| USD 82 / Per Unit |
500 Units |
| USD 90 / Per Unit |
100 Units |
| USD 100 / Per Unit |
*T&C Applicable. *Lens and cable not included. We shall help you identify the right lens and cable for your use case.
-
The anniversary pricing listed above applies to the Falcon-1335CRS board-level camera variants only. For enclosure-based configurations, please contact Vadzo Support for a customized quotation.
-
Price Lock Guarantee: Upon placing your initial order, the quoted pricing will remain fixed for all repeat orders for a period of 48 months.
Falcon-1335CRS
Best-Suited Applications for Production Deployment
Designed for High-Performance OEM Vision Systems
4K Video Surveillance
Retail AI Vision System
.webp)
Ophthalmology Devices
Facial Recognition
Kiosk & Digital Signage
Our Software Suite for UVC Cameras
Vadzo ARC is a software suite designed for seamless integration and control of USB Video Class (UVC) cameras. It provides precise camera configuration, real-time imaging adjustments, and firmware update management for Windows, Linux and Android platforms. The SDK ensures reliable performance with features like Region of Interest (ROI) configuration, Smart GPIO control, and fail-safe firmware updates.
%20(1).webp)
Vadzo ARC Software
VISPA ARC SDK: UVC Camera Control and Integration
VISPA ARC SDK enables camera control, video streaming, and hardware management for Vadzo USB cameras on Windows and Android. It supports autofocus, still capture, ROI, image flip, SMART IO, and secure updates. Windows includes DLL support, while Android SDK ensures seamless integration with Falcon and Merlin cameras.
Windows
Android
Linux
Other Flagship Cameras
Production-ready flagship camera modules eligible under the Vadzo Anniversary Offer for scalable builds and lifetime price lock.
Interested in Availing the Anniversary Offer?
Secure anniversary pricing for Falcon-1335CRS and lock in long-term cost advantages for your production roadmap.
Anniversary pricing applicable on board variants.
48-Month Price Lock on repeat orders.
Scalable from pilot to volume production.
Special Pricing request for enclosure option.
Request for HW/FW customizations.
