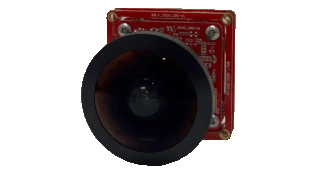

Meet Falcon-2020MRS – 20MP Monochrome USB Camera
Built to solve real OEM vision challenges.
Powered by the Onsemi AR2020 monochrome image sensor, Falcon-2020MRS delivers ultra-high-resolution imaging with strong sensitivity and low noise characteristics, enabling detailed capture across industrial, robotics, and inspection systems.
Designed in a square board architecture, the module features a 38mm (L) × 38mm (B) form factor convertible to 32mm (L) × 32mm (B) and a two-board configuration to support robust industrial layouts and flexible mechanical mounting.
Optics Flexibility Based on Application Needs
Select your required field of view and IR configuration:
74° DFOV with IR Filter
74° DFOV without IR Filter
Custom DFOV with IR Filter
Custom DFOV without IR Filter
Specification Overview
Parameter | Technical Details (Falcon-2020MRS) |
|---|---|
Sensor | Onsemi AR2020; 20MP, 1/1.8" optical format, 1.4µm monochrome pixel architecture |
Optics | S-Mount (M12) lens holder with fixed or configurable optics |
Video Resolutions | • 20MP (5120 × 3840) @ 7fps (YUV)
• 16MP (4608 × 3456) @ 10fps
• 8MP (3840 × 2160) @ 15fps
• 4K (3840 × 2160) @ 30fps (MJPEG) |
ISP Features | On-board ISP supporting auto exposure with ROI control, auto gain, noise reduction, MJPEG compression, digital PTZ, and pixel correction functions |
Interface | USB 3.2 Gen1 Type-C with backward compatibility to USB 2.0 |
Compliances | UVC, NDAA, RoHS3, REACH |
Pre-Compliance | FCC, CE |
Software & SDK Support | Vadzo Arc software with VISPA SDK; compatible with Windows and Linux, with API support for C, C++, C#, and Python |
Engineered as a two-board solution with a customizable form factor to match your product architecture:
Board 1 : Base Board
Falcon-2020MRS
Board 2 : USB Board
Falcon-2020MRS
_gif.gif)
What Problems Does Falcon-2020MRS Solve?
Power, NIR & Bandwidth Constraints
Lowest power design with enhanced 850nm/940nm NIR sensitivity. SmartROI, Wake on Motion, and flexible subsampling reduce bandwidth and processing load.
Dynamic Range & Capture Control Limitations
eDR, LI-HDR, GRR, Trigger, and Context Switching enable reliable capture in high-contrast and synchronized systems.
Limited Image Control Flexibility
Vadzo’s VISPA SDK combined with deep hardware ISP control enables precise adjustment of exposure, focus, ROI, and color parameters.
Deployment Delays Due to Compatibility Issues
A dedicated team of Application Engineers, optics specialists, hardware & firmware experts ensure structured support from trials to mass production.
Scalability Challenges in Volume Procurement
Decade-long imaging expertise and robust SCM enable seamless scaling from samples to 100K+ units with supply continuity and cost stability.
Accelerate Integration With Vadzo
What We Actually Do
Faster Camera Integration. Fewer Iterations. Quicker Time-to-Market.
Integrating a camera into your system is not just about plugging in a module. It involves sensor alignment, optics, ISP tuning, bandwidth optimization, firmware integration, and system-level validation.
Vadzo works alongside your engineering team to convert camera capability into deployable system performance.
Architecture First
Before development begins, we help define:
Requirement Analysis
Sensor & Optics Selection
Interface selection (USB, MIPI, GigE, GMSL, FPD-Link)
Data flow and bandwidth planning
Illumination and trigger strategy
This prevents downstream rework.
Structured Support
Before development begins, we help define:
Optics Calibrations
ISP Tuning and Optimizations
Driver and SDK Alignment
Form Fit Optimization
Use Case Specific POCs
Vadzo doesn’t just supply cameras. We engineer complete imaging subsystems that integrate cleanly into your product architecture.
Anniversary Pricing
Secure volume pricing for immediate and upcoming builds:
Quantity | Standard Pricing | Anniversary Pricing |
|---|---|---|
5000 Units | - | USD 80 / Per Unit |
1000 Units |
| USD 95 / Per Unit |
500 Units |
| USD 110 / Per Unit |
100 Units |
| USD 175 / Per Unit |
*T&C Applicable. *Lens and cable not included. We shall help you identify the right lens and cable for your use case.
-
The anniversary pricing listed above applies to the Falcon-2020MRS board-level camera variants only. For enclosure-based configurations, please contact Vadzo Support for a customized quotation.
-
Price Lock Guarantee: Upon placing your initial order, the quoted pricing will remain fixed for all repeat orders for a period of 48 months.
Falcon-2020MRS
Best-Suited Applications for Production Deployment
Designed for High-Performance OEM Vision Systems
Iris Recognition
.webp)
Digital Pathology
Quality Inspection
OCR & Document Scanning
NIR Surveillance
Our Software Suite for UVC Cameras
Vadzo ARC is a software suite designed for seamless integration and control of USB Video Class (UVC) cameras. It provides precise camera configuration, real-time imaging adjustments, and firmware update management for Windows, Linux and Android platforms. The SDK ensures reliable performance with features like Region of Interest (ROI) configuration, Smart GPIO control, and fail-safe firmware updates.
%20(1).webp)
Vadzo ARC Software
VISPA ARC SDK: UVC Camera Control and Integration
VISPA ARC SDK enables camera control, video streaming, and hardware management for Vadzo USB cameras on Windows and Android. It supports autofocus, still capture, ROI, image flip, SMART IO, and secure updates. Windows includes DLL support, while Android SDK ensures seamless integration with Falcon and Merlin cameras.
Windows
Android
Linux
Other Flagship Cameras
Production-ready flagship camera modules eligible under the Vadzo Anniversary Offer for scalable builds and lifetime price lock.
Interested in Availing the Anniversary Offer?
Secure anniversary pricing for Falcon-2020MRS and lock in long-term cost advantages for your production roadmap.
Anniversary pricing applicable on board variants.
48-Month Price Lock on repeat orders.
Scalable from pilot to volume production.
Special Pricing request for enclosure option.
Request for HW/FW customizations.
