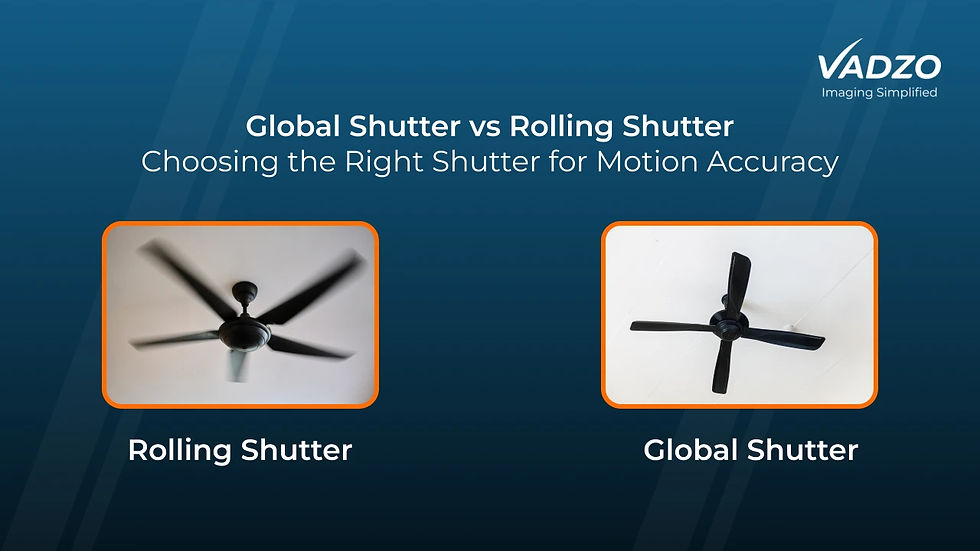

Global Shutter vs Rolling Shutter: Appropriate Justification for Choosing the Best Among Them

The transition from analog to digital allowed digital cameras to process photographs in seconds. Digital photography has become an integral part of our modern way of life.

We now have compact cameras with amazing image quality. As cameras improve, so does the way we use images in a variety of enterprises. In the age of artificial intelligence, imaging systems are taking over the role of the human eye. Imaging can collect a wealth of information from ordinary activities, including age, gender, and height. For example, we can collect data from images of people standing at a stop sign, using a vending machine, entering a store, crossing the street, passing a kiosk, registering for a conference, ordering a coffee, boarding a flight, and so on.

Curious about how a global shutter can improve your project? Check out the Innova-234CGS Camera

The Mechanism of the Shutter

Understanding the Shutter Mechanism, the Shutter operation controls the procedure that image sensors collect light in time.

Crucial settings such as exposure, reset, and readout time influence image clarity and particularly in moving scenes. Understanding the shutter mechanism is fundamental to how image sensors regulate the capture of light over a specific period. The shutter operation governs the precise moment and duration during which the sensor is exposed to incoming light, playing a crucial role in image formation. Key settings such as exposure time, reset intervals, and readout timing significantly influence the resulting image quality.

Global Shutter

A global shutter is a type of CMOS image sensor that takes all the pixels on the sensor array at the same time, enabling a “freeze frame” capture of the scene.

With global shutters, all pixels on the sensor are exposed at once, capturing the entire image at once. Before the exposure begins, all pixels in the array will be placed in a ‘keep clean’ state. As soon as the exposure starts, each pixel gathers charge and continues to do so throughout the exposure. After exposure ends, each pixel sends its charge to its readout node simultaneously.

In this way, exposure and readout occur simultaneously. As a result, we can accurately capture objects that move quickly or environments that change rapidly. As a result of the control over the exposure start, numerous global shutter sensors can be synchronized simultaneously.

Benefits of Global Shutter

• The global shutter has an advantage over the rolling shutter due to the consistency and accuracy of the images created by CCD sensors and the global shutter.

• The photographer may be guaranteed that the photos made with this shutter will precisely depict the subject being snapped, without any segmentation or “jello effect.”

• Cameras may no longer need shutter blades, which lessens the occasional malfunction that happens in the moving parts of the shutter mechanism.

Global Shutter Functions

Global shutter A global shutter sensor counts all of the pixels in a picture and exposes the whole picture simultaneously. In contrast to rolling shutters, where the rows of pixels are read row-by-row, the global shutters start and end the exposure on an entire sensor simultaneously. It eliminates the distortion of time in dynamic scenes.

As image acquisition proceeds, all pixels start exposing at the same time and accumulate charges in their corresponding pixels. Upon leveling off the exposure, a set of data for each pixel is transferred into a readout buffer and processed row by row.

Decoupling the exposure time and readout time removes the geometric skew, wobble, or partial exposure at the column that is typical in high-speed or high-vibration situations. Global shutter architecture is perfect on occasions that demand the alignment of space and time in the image.

The Common Uses of a Global Shutter Camera

Robotics

Visual positioning requires distortion-free frames to allow the real-time path detection more especially when robotic systems operate in environments with dynamic properties. Global shutter sensors image all pixels in parallel, providing spatially consistent data with which to track the movement of objects or to detect objects.

Industrial inspection

Aspects passing through conveyor belts or changing objects on a rotary machine must be photographed without geometrical distortion and smearing. The global shutter sensor captures a certain moment when motion is frozen. Thus, they are perfect for visual quality control and fault analysis in the automatic production.

Rolling Shutter

This type of sensor captures the entire image sequentially, which means that the pixels are divided into rows and exposed one after another. This means the resulting image contains a slight time delay between each row since each row requires a specific amount of time to read out. This is referred to as the “line time.” As soon as the rows are exposed, the values are integrated, and then the values are read out sequentially.

In contrast to the global shutter sensor, all rows need not be ‘clean slates’ before capturing. The sensor can work in overlap mode. Upon completion of the read-out operations, each row shall begin the exposure for the next frame. Read-out of all rows isn’t mandatory.

Benefits of Rolling Shutter

• It is significantly more economically possible to produce it.

• Direct integration of complicated circuitry within the CMOS itself is substantially simpler.

• Since their introduction, this has made it possible for it to be utilized almost exclusively in smartphones and digital cameras.

• The luminous intensity range or range boundaries when taking a picture are referred to as the dynamic range. A wide dynamic range suggests that the final image will depict the situation more accurately in real life. Even under intense illumination, almost the entire dynamic range is preserved.

The Common Uses of a Global Shutter Camera

Document scanning

Rolling shutter sensors are good when the source material to be imaged is flat, stationary documents, and allow reliable and non-distorted capture of images. The row-by-row exposure implements no artifacts apparent as the subject stands totally still during the time of acquisition.

Biometrics and facial Recognition

Such systems generally work with controlled lighting and location conditions, with subjects relatively stationary. Sensors able to carry a rolling shutter can render sharp and high-resolution images that satisfy the resolution and uniformity needs of identity verification algorithms.

Rolling Shutter or Global Shutter?

Your preference for rolling shutter or global shutter mode will mostly rely on your project. Global shutters have an exposure mechanism that is “non-transient,” exactly like interline CCDs. With the use of global shutter sensors, you can take pictures, accurately control exposure duration, and synchronize numerous sensors to capture moving objects or transient occurrences throughout a series of kinetic acquisitions with no spatial artifacts. Thus, global shutter sensors are the way to go for use cases involving image capture in motion.

In some circumstances, we need to capture static objects or just record video streams. We can use rolling shutter cameras in these situations. Rolling Shutter mode is still likely to be suitable for many scientific applications due to its improved non-synchronized maximum frame rate possibility and decreased read noise. Because of the simplicity of its architecture, rolling shutter sensors can provide more pixels at a lower cost than global shutter cameras. If the frame rate is high enough for the camera to temporally oversample object dynamics in the image region. Since it is typically undesirable to have an object traverse a substantial distance throughout a single exposure, thus oversampling is good imaging practice.

Conclusion: Choosing Between Global Shutter and Rolling Shutter

In making the choice of a global and rolling shutter camera, the selection that you can make must be based on the needs that you are trying to satisfy. Global shutter cameras are best suited in areas where full frames are important and motion occurs frequently or at high speeds, such as robotics, factory automation, and drone vision. Rolling shutter cameras are also used to provide cost-effective and high-resolution images in fixed or controlled applications, e.g., document scanning, biometrics, or minimal-motion surveillance. Summed up, select a global shutter if you need accurate and undistorted images supported on motion; rolling shutter when you need high resolution and cost-efficiency, and high stationary scene capture. Knowing your imaging environment is what helps to make the correct choice.
