How Autofocus Sensors Work: A Deep Dive into Mechanisms and Embedded Applications

In embedded vision, it is essential to capture clear, crisp images in moving scenes within a budget. In the case of medical imaging equipment, a drone flying in a rugged environment, or a modern traffic management system, autofocus sensor technology is at the center of visual clarity.

This blog examines the working premises, autofocus technologies, actuation, and business strategies that have made autofocus sensor mandatory in contemporary embedded systems.

Types of Autofocus Mechanisms

Autofocus systems in embedded cameras rely primarily on contrast-based, phase-detection, or laser-based methods to determine the optimal lens position. Each of these mechanisms has unique advantages and is suited for specific application scenarios, especially where system constraints like thermal budgets, memory usage, and frame timing are tightly managed.

Contrast-Based Autofocus

This method calculates focus by evaluating the sharpness or contrast of the image at various lens positions. The point at which contrast is maximized is considered the best focus. It is commonly used in embedded cameras where slower focusing speeds are acceptable and processing power is limited. While accurate, it can be slower because it requires a step-by-step scan of focus positions.

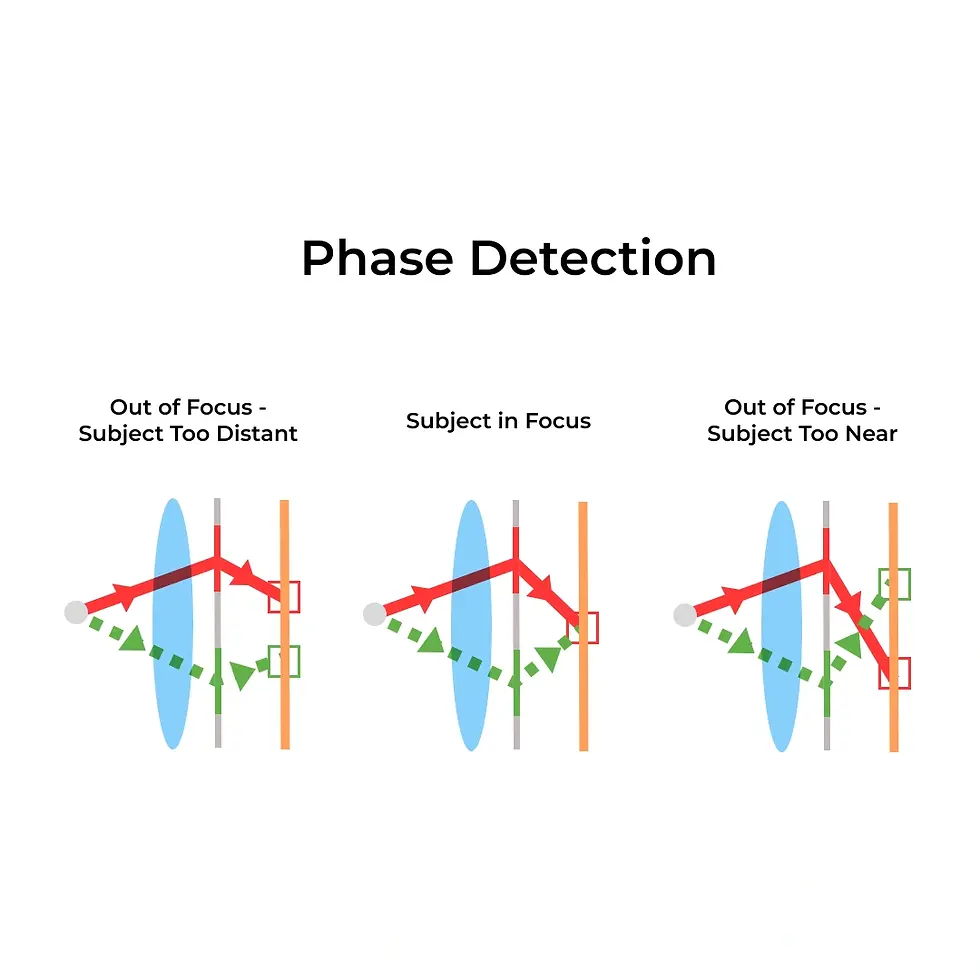

Phase-Detection Autofocus (PDAF)

PDAF is typically integrated into the sensor’s pixel array. It works by splitting incoming light and comparing the phase of the image data. This enables the system to determine both the direction and magnitude of lens adjustment in a single step, allowing for faster and more predictive focusing—ideal for tracking motion or achieving quick focus lock in dynamic scenes.

How Autofocus Sensors Work & Lens Movement and Focus Adjustment Algorithms

The process of autofocus systems functioning can be subdivided into two basic stages: Detection and Rectification. Detection refers to the process of someone who will tell whether the image is in focus. This is made by analysis of the image or via external sensors for measuring the depth or contrast.

The second stage is rectification, where the lens is adjusted to the desired focus. After the detection system establishes whether the image focus is blurred or clear, the rectifying systems adjust the lens setting to maximize focus. Such is commonly realized with motorized features, e.g., voice coil motors (VCM) or stepper motors.

Detection in an Autofocus System

There are two classes of autofocus detection systems:

• Active Autofocus Detection Methods

• Passive Autofocus Detection Methods

Active Autofocus Detection Methods

The active autofocus systems are based on optical depth to move the depth of the lens. An amount of depth is indicated by additional hardware, such as infrared or ultrasonic sensors. Depending on the depth measured Based on this depth, the autofocus sensor triggers adjustments to achieve focus. These systems are good, but the problem is that they need additional hardware, which complicates the system and makes it expensive.

Passive Autofocus Detection Methods

The passive auto focus systems do not quantify depth. Rather, they examine picture data and focus based on the difference in contrast or phase. Now, we can take a closer examination of contrast-based auto-focus detection systems and phase-based detection systems.

Actuation Technologies Behind Autofocus

Once an autofocus sensor detects that an image is out of focus, the next step is rectification—physically adjusting the lens to bring the subject into sharp focus. This correction is achieved through various actuation technologies that move lens elements to alter the focal length.

Traditional Actuation Mechanisms

Modern autofocus systems commonly employ motorized actuators, including:

• Voice Coil Motors (VCMs): These are the most widely used autofocus actuators. VCMs operate using electromagnetic force to move the lens linearly. They offer a balanced combination of speed, precision, and compactness, making them ideal for smartphones and embedded vision devices.

• Stepper Motors: Stepper motors rotate the lens in discrete steps, providing precise control over focus adjustments. Though slower than VCMs, they are highly reliable in professional imaging systems.

• Micromotors: These miniature motors are used in specific applications where fine control is essential, although they may not match the speed of VCMs.

  Each of these actuators enables mechanical movement of the lens group to reach the desired focus point, but they are subject to limitations such as wear and tear, response time, and size constraints in compact systems.

Integration of Autofocus Sensors in Embedded Cameras

Embedded platforms such as Raspberry Pi, NVIDIA Jetson Nano, and Xavier NX support cameras via MIPI CSI interfaces. The autofocus sensor must integrate seamlessly with the MIPI data stream and synchronize with the ISP firmware.

The autofocus camera logic is typically managed over I²C, where commands to the lens module are triggered based on ISP evaluations. The autofocus sensor output is processed in real-time to adjust focus with minimal software latency, often through closed-loop firmware control. This tight integration allows for real-time autofocus adjustments without excessive CPU load.

Vadzo Autofocus Camera Modules: Technical Overview

Vadzo Imaging’s autofocus-enabled camera modules are engineered for embedded developers working with edge compute platforms. These MIPI interface cameras combine a compact form factor, robust ISP firmware, and real-time focus adaptability.

Vadzo Bolt-1335CRO – AR1335 Autofocus with Optical Image Stabilization

• OIS Integration for movement and drone-based imaging

• Enhanced focus-lock during motion

• Ideal for AGVs, UAVs, and dynamic scene monitoring

Vadzo Bolt-258CRA – IMX258 PDAF 4K Autofocus MIPI Camera

• Sensor: Sony IMX258 (13MP) with Phase-Detection Autofocus

• High-speed focusing with ISP support.

• Platform support: Raspberry Pi, Jetson Nano, Xavier NX

Vadzo Bolt-5640CRA – OV5640 Full HD Autofocus MIPI Camera

• Sensor: Omnivision OV5640 (5MP)

• Autofocus for digital kiosks and pathology systems

• Lower resolution variant optimized for wide deployment.

Why Autofocus Is Essential in Today’s Embedded Vision Systems

The role of the autofocus sensor in embedded imaging has transitioned from luxury to necessity. From kiosks and robotics to precision vision systems in healthcare and logistics, real-time focusing enables intelligent decision-making at the edge. The interplay between the autofocus sensor, ISP, and embedded platform must be optimized at the hardware and firmware levels.

Vadzo’s autofocus-enabled camera modules provide developers with turnkey solutions that offer industry-grade focus precision, real-time responsiveness, and compact form factors for deployment at scale. Whether working on next-generation smart machines or autonomous solutions, selecting the right autofocus sensor is critical to imaging success.

---
