General Information
Product Family Falcon Series
Camera Model Vadzo Falcon-415CRS
Sensor
Sensor IMX415 CMOS Sensor from Sony
Sensor Format 1/2.8"
Pixel Size 1.45 µm x 1.45 µm
Max Resolution 8MP - 3864(H) x 2192(V)
Shutter Rolling Shutter
Chroma Color
Camera
Optics S Mount (M12 Standard)
Lens FOV 74 DFOV
Interface USB 3.0 Gen1 Type C Interface Backward Compatible to USB 2.0
GPIO Connector Yes Available*
Power USB Powered
Operating Temperature -30⁰C to 70⁰C
Dimension 38mm (L) x 38mm (B) convertible to 32mm (L) x 32mm (B)
Weight 13 Grams (Without Lens)
OS Supported Windows, Linux, Android (Need additional SDK)
Conformity UVC Compliant, RoHS 3, REACH

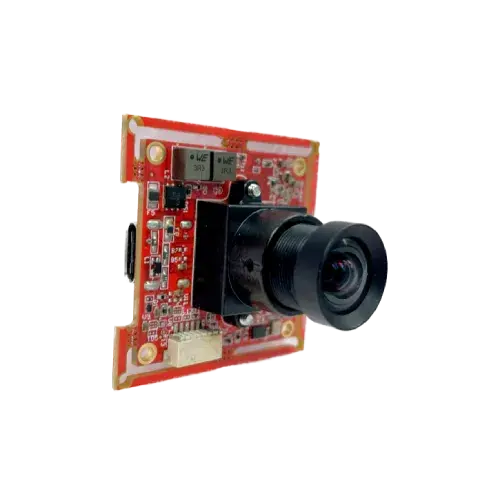

IMX415 Low Light 4K USB 3.0 Camera
Falcon-415CRS
Series :
Falcon-415CRS
Description :
Vadzo Falcon-415CRS is a low light 4K USB 3.0 Camera based on Sony IMX415 Starvis Sensor coupled with high-performance ISP. The camera delivers max resolution of 8MP and Video streaming of 4K, 1080p and 720p. Applicable in use cases such as medical device camera, patient care camera, retail AI camera, smart city camera, etc.
OUT OF STOCK
(Will be available in 16 weeks)
Mentioned Price is Applicable for orders above 1k unit
The shipment will be delivered in 3 to 4 weeks.
Price Details
UNIT PRICE
NOT INCLUSIVE
$319.00
Lens & Cable
QUANTITY
1 - 249
1000 - 4999
$225.00
$265.00
Lens & Cable
Lens & Cable
250 - 999
Login to Download Datasheet
CAD File
Download Initiated!
You can download again after 60 seconds.
Downloads
Falcon-415CRS
Camera can be customized to meet your needs.
Vadzo team shall be able to assist you with the details on this. Reach Vadzo Team for customization & quotation for bulk quantities.
Form Factor Modification & Board Redesigns.
Firmware Modifications to Incorporate Custom Features.
Design & Integration of NIR and Color LED Array Boards.
Design & Integration of Microphones & Speakers.
Design & Integration of Advanced Sensors: ToF, mmWave Radar, IMU.
Lens Holder Modifications & Electro-Mechanical Lens Filter Control.
Enclosure Design & Manufacturing: IP-Rated and Non IP-Rated.
